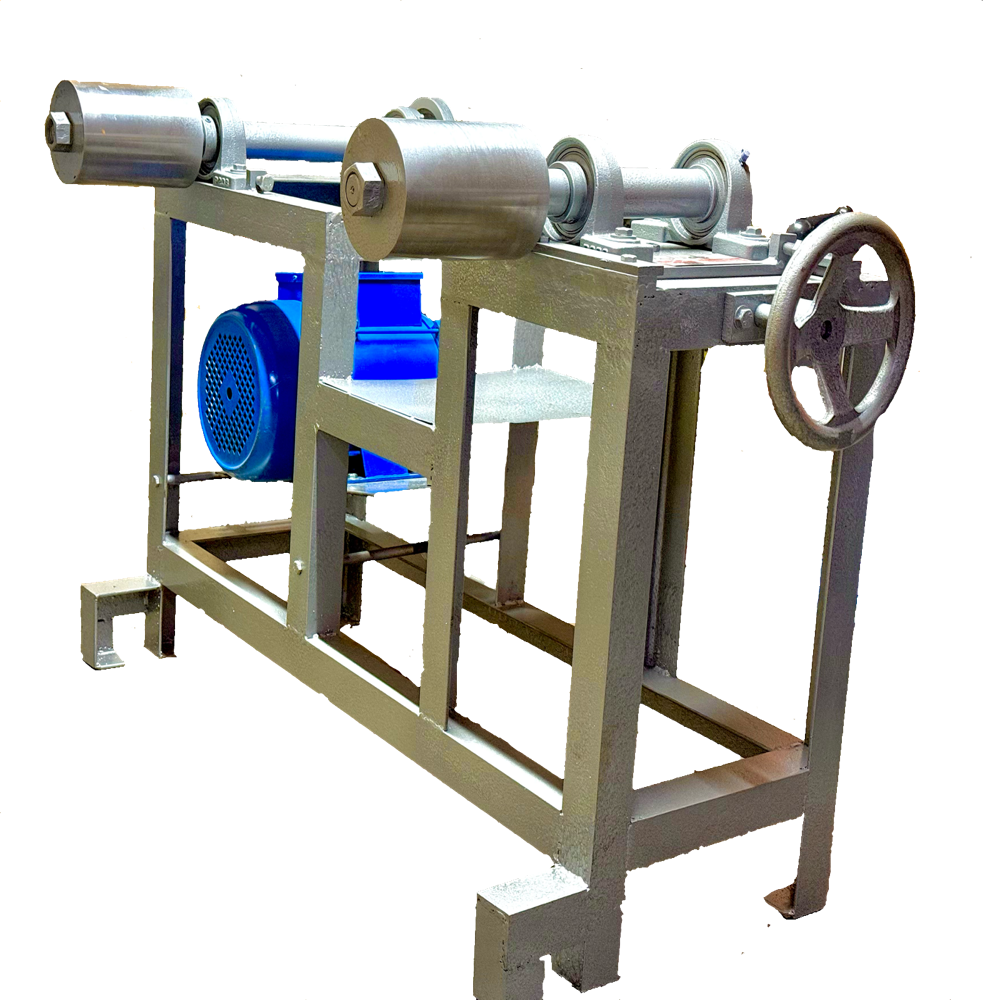

High-Precision Glass Patta/Belt Machine

Name: High-Precision Glass Patta/Belt Machine
Brand: JUZY ENGINEERING WORKS
Price: 26000.0 INR
Availability: InStock

Price 26000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

High-Precision Glass Patta/Belt Machine Specification

Application Surface
Glass Edges & Patta Strips

Accessories
Diamond belts, Water pump, Spare Belts, Tool Kit

Polish Type
Fine Polished

Application Areas
Doors, Windows, Tabletops, Interior Partitions

Power Source
Electric

Power
5.5 kW

Form
Floor Mounted Machine

Usage & Applications
Edge grinding, polishing, beveling for architectural and furniture glass

Finish Type
High-Gloss

Grade Standard
Industrial Grade

Type
High-Precision Glass Patta/Belt Machine

Material
Stainless Steel, Heavy-Duty Alloy

Capacity
Up to 200mm glass width processing

Computerized
No

Automatic Grade
Manual

Thickness
3-12 Millimeter (mm)

Air Pressure
0.6-0.8 MPa

Heating System
Integrated Electric Heater

Voltage
380V, 50Hz

Size
Approx. 3500 x 1100 x 1400 mm

Weight
100-120 Kilograms (kg)

Color
Industrial Grey/Blue

Noise Level
< 75 dB

Cooling System
Water-cooled grinding belt section

Control Panel
Digital with Touch Interface

Safety Features
Emergency stop, Overload protection, Safety guards

Service Support
On-site installation and training, Online support

Minimum Glass Size
100 x 100 mm

Water Circulation
Closed loop with filtration system

Processing Accuracy
0.1 mm

Max Glass Length
Unlimited (Continuous Feed Design)

Conveyor System
Adjustable speed, heavy-duty rubberized belt

High-Precision Glass Patta/Belt Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About High-Precision Glass Patta/Belt Machine

A Vertical Straight Line Profile Edging Machine is a specialized industrial glass processing machine designed for grinding, profiling, and polishing the vertical edges of flat glass sheets. This machine is ideal for producing decorative edge profilessuch as OG, Cshape, bevel, pencil edge, and custom contourson vertical edges, delivering both precision and a premium surface finish.

Advanced Control and Speed Adjustment

The machine features a digital touch interface, enabling operators to easily adjust processing parameters and conveyor speed for tailored results. The user-friendly control panel ensures operators can quickly adapt settings for different glass sizes and finishing requirements, resulting in optimal efficiency and consistency for every batch.

Efficient Water Circulation and Cooling

A closed-loop water circulation system with filtration maintains cleanliness while cooling the grinding belt during continuous operations. This system reduces water consumption and ensures that the machine operates effectively, supporting a high-quality finish and prolonging the lifespan of both the grinding belts and the machine itself.

Robust Safety Features

Equipped with emergency stop buttons, overload protection, and comprehensive safety guards, this belt machine offers enhanced operator safety at every stage. The noise level remains below 75 dB, ensuring a comfortable working environment, while built-in safety mechanisms prevent accidental damage and minimize downtime.

FAQ's of High-Precision Glass Patta/Belt Machine:

Q: How is the High-Precision Glass Patta/Belt Machine operated?

A: The machine is operated manually using a digital touch interface control panel. Operators can adjust conveyor speed, processing depth, and other parameters to suit specific glass types and sizes.

Q: What are the primary benefits of the closed-loop water system?

A: The closed-loop water circulation system with filtration ensures consistent cooling of the grinding section, minimizes water usage, maintains a clean operation, and extends the lifespan of both the machine and its components.

Q: When should the grinding belts be replaced and how is this done?

A: Grinding belts should be replaced whenever noticeable wear, reduced efficiency, or inconsistent finishes are observed. The machine comes with spare belts and a tool kit to facilitate quick, straightforward replacement.

Q: Where is this glass patta/belt machine typically used?

A: It is commonly deployed in glass fabrication units, architectural glass workshops, and furniture manufacturing facilities for edge grinding, polishing, and beveling of doors, windows, tabletops, and interior partitions.

Q: What safety features does the machine provide to operators?

A: Safety is ensured with emergency stop buttons, overload protection, and sturdy safety guards, reducing the risk of accidents and enhancing operator confidence during high-speed operations.

Q: How does the machine achieve high-precision finishing on glass edges?

A: Utilizing finely engineered grinding belts, precise manual controls, stable conveyor movement, and an integrated water-cooled system, the machine consistently achieves processing accuracy up to 0.1 mm, delivering a high-gloss finish.
