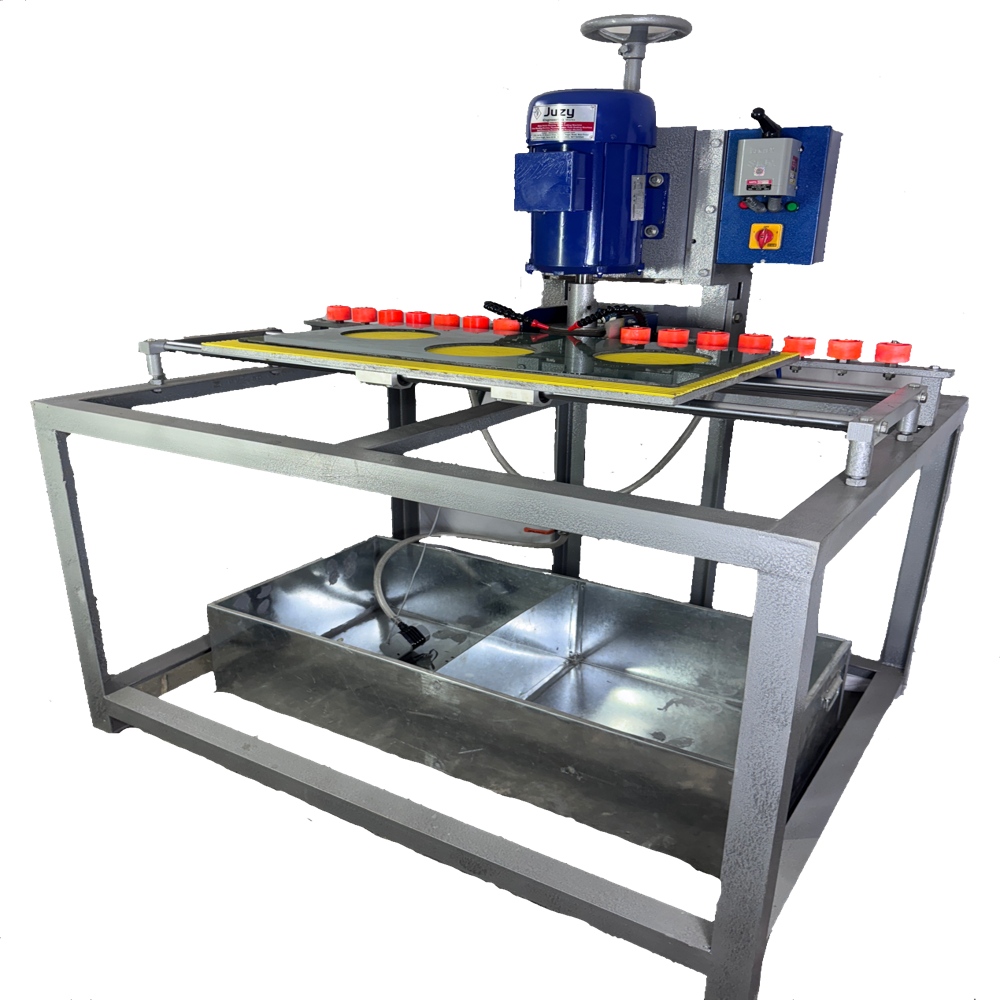

Glass Edge Polish Machine

Name: Glass Edge Polish Machine
Brand: JUZY ENGINEERING WORKS
Price: 90000.0 INR
Availability: InStock

Price 90000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Glass Edge Polish Machine Specification

Power Source
Electric

Application Surface
Glass Edges

Accessories
Water Tank, Polishing Wheels, Control Panel

Grade Standard
Industrial Grade

Form
Machine

Finish Type
Polished

Usage & Applications
Glass Edge Polishing, Smoothing, Finishing for Architectural, Automotive, and Decorative Glass

Power
7.5 kW

Application Areas
Glass Workshops, Fabrication Industries

Polish Type
Edge Polish (Flat & Arris)

Type
Glass Edge Polish Machine

Material
Mild Steel Body, Stainless Steel Components

Capacity
300-500 mm/min (variable)

Computerized
No

Automatic Grade
Semi-Automatic

Thickness
3-12 Millimeter (mm)

Air Pressure
0.6-0.8 Mpa

Heating System
Absent

Voltage
380 V / 50 Hz

Size
Approx. 6800 x 1000 x 2500 mm

Weight
Approx. 3200 kg

Color
Blue

Warranty
1 Year

Glass Shape Compatibility
Rectangular, Square Sheets

Control Type
Push Button / Manual

Edge Types Suitable
Flat, Bevel, Pencil Edge

Cooling Method
Water Circulation System

Drive Motor
Heavy Duty, Copper Winding

Noise Level
<75 dB

Polishing Speed
Adjustable

Transport System
Chain Transmission

Working Table Height
Approximately 780 mm

Spindle Quantity
9 Spindles

Surface Treatment
Powder Coated

Glass Edge Polish Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Glass Edge Polish Machine

A Buffing Machine is a polishing device used to provide a smooth, shiny, and mirror-like finish on different materials such as glass, metal, stainless steel, aluminum, plastic, and wood. The machine operates by rotating buffing wheels or polishing pads at high speed while applying polishing compounds to remove scratches, oxidation, and surface imperfections.

Versatile and Durable Construction

Crafted with a sturdy mild steel body and stainless steel components, this glass edge polish machine is built to last in demanding industrial settings. The powder-coated surface treatment adds an extra layer of protection against wear, making maintenance effortless and extending machine lifespan. Its compatibility with glass thicknesses between 3 to 12 mm addresses a broad range of polishing needs.

Customized Polishing Performance

Equipped with 9 high-performance spindles and an adjustable polishing speed, the machine allows operators to fine-tune processes according to material requirements. The chain transmission ensures a smooth feed, while the integrated water circulation system maintains optimal temperature and surface integrity throughout the polishing cycle.

FAQ's of Glass Edge Polish Machine:

Q: How does the water circulation cooling system benefit glass edge polishing?

A: The water circulation system continuously cools the glass surface and polishing wheels, minimizing the risk of thermal stress or cracks during processing and ensuring a smooth, flawless finish.

Q: What types of glass edges can this machine polish?

A: This machine is suitable for finishing flat, bevel, and pencil edges on rectangular and square glass sheets, making it highly versatile for various decorative, architectural, and automotive applications.

Q: When should polishing wheels be replaced on this machine?

A: Polishing wheels should be replaced whenever you notice decreased efficiency, uneven finishes, or after extended usage as per the manufacturer's guidelines, to ensure optimal polishing quality.

Q: Where is this machine typically installed and used?

A: It is ideally installed in glass workshops and fabrication industries throughout India where precision edge polishing of glass sheets is frequently required.

Q: What is the process for operating the glass edge polish machine?

A: Operators load the glass sheet onto the working table, adjust the polishing speed, and use the push button/manual controls to begin the process. The chain transmission moves the glass while spindles and the water system work together for efficient edge polishing.

Q: How does the adjustable polishing speed enhance usage?

A: Adjustable speed allows operators to match polishing intensity with glass thickness and type, resulting in better control over the finish and minimizing potential damage to delicate sheets.

Q: What are the key benefits of using this glass edge polish machine?

A: Benefits include consistent high-quality edge finishes, reduced manual effort due to semi-automatic operation, compatibility with multiple edge types, and industrial-grade durability, making it an excellent investment for professional glass-processing applications.
