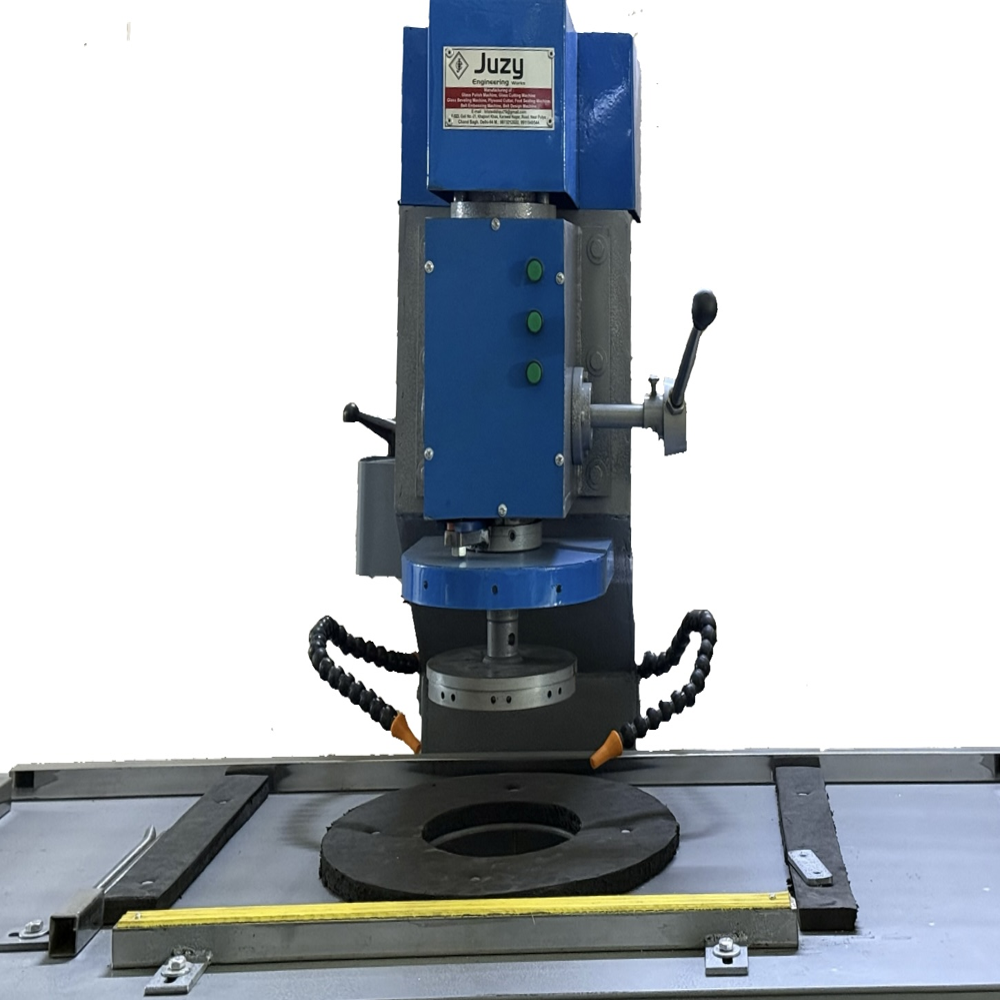

Glass Hole Machine

Name: Glass Hole Machine
Brand: JUZY ENGINEERING WORKS
Price: 110000.0 INR
Availability: InStock

Price 110000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Glass Hole Machine Specification

Grade Standard
Industrial

Finish Type
Powder Coated

Application Surface
Flat Glass

Power Source
Electric

Accessories
Diamond Drill Bits, Water Pump

Usage & Applications
Drilling Holes in Glass Sheets

Form
Machine

Power
2.2 kW

Application Areas
Glass Industry, Construction, Fabrication

Type
Glass Hole Machine

Material
Mild Steel

Capacity
Up to 25 mm glass thickness

Computerized
No

Automatic Grade
Manual

Thickness
163-165 Millimeter (mm)

Air Pressure
0.5-0.8 MPa

Voltage
220 V/380 V

Size
1400 x 650 x 1500 mm

Weight
450 kg

Color
Blue/White

Warranty
1 Year

Table Material
Rubber-Padded Steel

Main Motor Power
2.2 kW

Number of Spindles
1

Spindle Speed
1400 r/min

Noise Level
Low

Drill Diameter Range
4-200 mm

Cooling System
Water Circulation

Operation
Foot Switch / Manual

Safety Features
Overload Protector, Safety Cover

Glass Hole Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Glass Hole Machine

This high-performance industrial machine from Juzy Engineering Works is designed for precision grinding, polishing, and finishing of circular components such as rings, discs, and similar metal or glass parts.

Efficient and Precise Glass Drilling

Achieve immaculate drilling results in glass sheets thanks to the machine's broad drill diameter range (4-200 mm) and reliable spindle speed of 1400 r/min. Equipped with advanced water circulation for cooling, it maintains optimal drill bit performance and prevents glass cracking, delivering consistent outcomes for both small and large holes.

Robust Build and Safety Assured

Built from powder-coated mild steel, this machine offers durability and stability. The inclusion of an overload protector and safety cover prioritizes operator safety. The rubber-padded steel table provides an extra layer of protection to delicate glass surfaces, while maintaining a low noise level during operation.

User-Friendly Operation and Versatility

The machine's manual and foot switch control system ensures straightforward use, making it suitable for operators of varying experience levels. With capacity for glass up to 25 mm thick and compatibility with both 220 V and 380 V power supplies, it adapts well to diverse industrial settings including construction and glass fabrication.

FAQ's of Glass Hole Machine:

Q: How does the Glass Hole Machine drill holes in glass sheets?

A: The Glass Hole Machine utilizes a diamond drill bit powered by a 2.2 kW motor and operates at 1400 r/min spindle speed. Using water circulation for cooling, it accurately drills holes in flat glass sheets by employing either a manual lever or a foot switch for precise control.

Q: What is the maximum thickness and hole diameter the machine can handle?

A: The machine can successfully drill through glass sheets up to 25 mm thick, supporting holes with diameters ranging from 4 mm to 200 mm, making it suitable for a wide variety of industrial glass drilling applications.

Q: When is water circulation used during operation?

A: Water circulation is active throughout the drilling process. It cools the diamond drill bit, helps minimize heat buildup, reduces the risk of glass cracking, and extends the drill bit's longevity.

Q: Where can this Glass Hole Machine be effectively deployed?

A: This machine is ideal for use in glass processing plants, construction projects, and fabrication workshops. It performs best on flat glass surfaces, offering reliable results in environments demanding precision and repeatability.

Q: What safety features are included in this machine?

A: The Glass Hole Machine is equipped with an overload protector and a safety cover to ensure user protection during drilling operations. These features help prevent accidents and extend machine life.

Q: How do I operate the machine-manually or with automatic functions?

A: This is a manually operated machine, offering control either through a manual lever or a foot switch. It does not have computerized or automated features, giving the operator full command over each drilling action.

Q: What are the benefits of using this machine in industrial applications?

A: The machine ensures efficient, precise, and safe glass drilling. Its robust construction, wide drilling range, and user-friendly controls allow for high productivity and adaptability across various industrial tasks, all while maintaining low noise and enhanced safety standards.
